Solvent Equipment

Solvent Extraction-Loop Extraction

Advantages of our Loop Extraction technology are as follows:The Extractor adopts chain driving system, New loop structure ensures less power consumption,less maintenance and no loud noise.Rotation speed of Loop type Extractor can be adjusted automatically accoriding to incoming oilseeds quality to ensure that the bin level is stable. This will help to form micro negative pressure in Extractor prevent solvent gas escaping out.Process of miscella circulation is improved to reduce solvent use,Solvent residue in meal and increases miscella concentration. Engery Is saved by reducing the evaporation quantity.In the Extractor, the main extraction way is percolating filtration. There is once rotation at the bending part to reduce extraction corner.

Solvent Extraction- Flat Rotation Extraction

Advantages of our Flat Rotation Extraction technology are as follows: The Extractor adopts rack driving system. Unique rotor balancing ensures less power consumption, less maintenance and no loud noise.Rotation speed of Air Lock and Rotor Extractor can be adjusted automatically according to incoming oilseeds quantity to ensure that the bin level is stable. This will help to form micro negative pressure in the Extractor and prevent solvent escaping out from the Extractor.Process of miscella circulation is improved to reduce solvent use, Solvent residue in meal and increases miscella concentration. Engery Is saved by reducing the evaporation quantity.Rotation Extractor is very popular to many kinds of pre-pressed cake. Rotation Cell at the high bin level makes it easy to form immersion extraction way and reduces meal fines in miscella. All this will help to improve the quality of crude oil and reduce scaling in the evaporation system.Out double layers Rotation Extractor has strong extraction power. It can be used for the extraction of oilseeds. Expanded oil materials and pre-pressed cakes with the oil content of 25~35%. After Extraction, oil residue in meal is reduced to less than 1%.

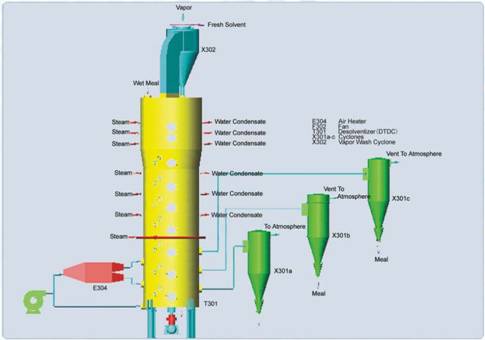

De-solventization-Oil Meal

Advantages of our Desolventization technology are as follows: Unique design of steam-permeability tray ensures thorough contact between wet meal and steam, This us good to reduce direct stem consumption and achieve good desolventing effect. Outlet temperature of secondary steam is low;The discharging mode is different in each layer to ensure the material discharging is stable and uniform;Quality of meal is consistent. Water level in meal is adjustable tailoring to final equipments. The meal is light yellow and there is no meal linking;A Solvent Collector is equipped at the outlet of secondary steam. The ejection nozzle sprays fresh solvent to collect meal fines and then the solvent enters into Desolventizer (DTDC). This has avoided discharging waste water containing organic substances;Choose world top brand speed reducer to ensure that the Desolventizer runs normally and stably.

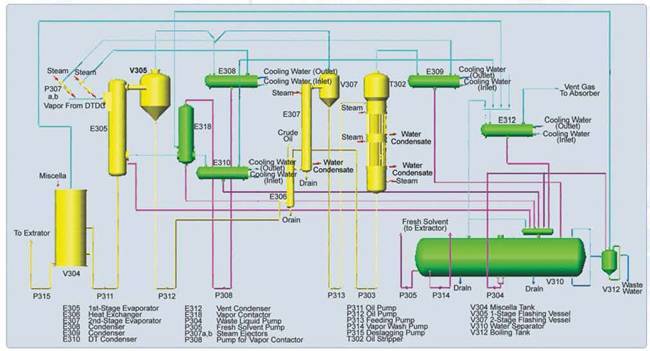

De-solventization- Miscella Evaporation

Advantages of our Evaporation technology are as follows:Evaporation at negative pressure makes it possible to make use of residual heat of secondary steam. Waste steam supplemented to Steam Ejector makes it unnecessary to supplement fresh steam to 1-stage Evaporator. Steam is saved by 30%;Miscella coming from 1-stage Evaporator is heated by high temperature oil coming from Oil Stripper, this has significantly increased the temperature of miscella going to the 2-stage Evaporator and reduced energy consumption;The miscella is evaporated at low temperature. Residual solvent is less in the crude oil with light color. It is not easy to scale in the Evaporators and Oil Stripper;Stainless Steel multi-tube condensers have made higher solvent recovery and the space reduced, All this will help to low the production cost and investment;The Vapor Contactor has reduced the load of DT condenser and increased temperature of fresh solvent & temperature of waste water discharged from Solvent –Water Separator;The Boiler Tank minimizes solvent residue in waste water.
